Top Rated Gate Repair Southlake | 10% Off & Free Estimate | On-Site in 60 Minutes

Gate Repair Southlake – Local Repair Services

When an automated driveway gate in Southlake fails, it is rarely just a minor inconvenience. A gate stuck closed traps your vehicle before morning commutes, while a gate stuck open leaves a luxury estate exposed. In neighborhoods like Timarron, Monticello, Clariden Ranch, and Carillon, Ironworks Gate Co. provides diagnostics and component-level repairs to help restore your system without unnecessary, high-cost replacements.^[1]

Gate issues in the local area can stem from electrical faults or mechanical strain related to regional soil movement. Shifting clay beneath support footings can lead to hinge binding and operator wear. Our technicians work to diagnose the physical and mechanical causes of failure, carrying common parts to perform repairs efficiently. See also Gate Repair Southlake – Call Now-10% Off – On-Site in 60 Minutes – Free Estimate.

Gate Repair Southlake: Local Service Overview

Automated entry systems on Southlake properties often require specialized mechanical and low-voltage electrical servicing. Fencing installers and general handymen may not specialize in complex circuit boards, hydraulic arms, and safety loop detectors. We focus on gate automation, structural alignment, and access control hardware.^[2]

Market Overview and Service Standards

Southlake properties feature custom-built architectural ironwork, heavy timber gates, and advanced security perimeters. Many established gate systems feature mechanical operators and access control boards that experience normal wear over time. Our approach aims to support the service life of your equipment by repairing individual relays, capacitors, motors, and hinges when practical.^[3]

Key Considerations for Southlake Homeowners

• Soil Movement: Seasonal wet and dry cycles can cause local clay soil to expand and contract. Minor post movement can create mechanical resistance on swing and slide operators.
• Component-Level Repairs: An entire gate system does not always need replacement when an operator stops running. Addressing a blown start capacitor, realigning limit switches, or replacing a worn rectifier may resolve the issue.
• Clear Estimates: We aim to provide clear communication, prompt scheduling, and upfront written estimates before any repair work begins.

Comparison: Specialized Gate Contractors vs. General Handymen

Automated gates combine high-voltage electrical feeds, low-voltage control loops, sensitive safety entrapment sensors, and heavy structural steel. Using a general handyman or standard fence company may lead to misdiagnosed electrical boards, damaged gearboxes, or repeated service calls.^[4]

Feature	Ironworks Gate Co.	General Handyman	Standard Fencing Co.
Diagnostics	Full electrical, hydraulic, and structural alignment testing	Trial-and-error part swapping	Focuses mainly on pickets and posts
Safety Calibration	UL 325 and ASTM F2200 compliance checks	Rarely verified	Basic visual checks
Truck Inventory	OEM circuit boards, capacitors, remotes, photo-eyes	Generic hardware store supplies	Brackets and lag bolts
Pricing & Estimates	Itemized written company estimates before work begins	Hourly estimates with potential overages	Lump-sum bids

1. Automatic Gate Opener and Motor Diagnostics

Driveway gate openers operate under regular mechanical loads. When an operator fails, our technicians test components in the electrical and drive systems to isolate the issue.

Common Driveway Gate Opener Failure Modes

If your gate opener hums, clicks repeatedly, opens partially and stops, or moves slowly, the issue may involve one of these internal components:

1. Start and Run Capacitors: On 115V and 230V AC motors, capacitors supply the electrical boost needed to initiate movement. Heat and electrical strain degrade them over time. If a motor hums but does not turn, replacing the capacitor can often resolve the issue.
2. Internal Gearboxes: When a gate binds due to post movement or misaligned tracks, internal gears inside the operator can experience wear. We inspect gearboxes and replace worn gear assemblies where feasible.
3. Limit Switches and Encoders: Limit assemblies signal to the board when the gate reaches full open or closed positions. If a switch slips, the operator may over-travel, bind against stops, or trigger safety reversals.

Our service vehicles carry common replacement components for major residential and commercial gate operators to help reduce repair turnaround times.

2. Soil Movement and Gate Post Realignment

Expansive clay soils found in North Texas expand when saturated during wet periods and contract during dry periods. When concrete footings shift, hinge posts can move out of alignment over time.

How Post Misalignment Affects Operators

When hinge posts tilt, gate leaves may drag along driveways or bind against latch catch-plates. An operator motor designed for standard resistance must exert additional force to overcome friction. This can lead to motor strain, tripped thermal overloads, and circuit board issues. Resolving the post alignment helps protect the longevity of the operator.

Structural Post Stabilization Methods

We work to address the underlying structural alignment of gate systems by:

• Excavating around shifted footings and adding structural reinforcement.
• Installing deeper footings designed to anchor into stable ground layers.
• Re-plumbing hinge posts and adjusting or replacing heavy-duty hinges.
• Adjusting operator brackets and force settings so the motor operates with minimal resistance.

3. Hinge, Roller, and Track Repair

Physical hardware experiences continuous wear during regular operation. A balanced gate should move smoothly when placed in manual release mode. If moving your gate manually requires heavy exertion, hinges, rollers, or tracks may require service.

Ornamental Iron and Wood Gates

As noted by Ironworks Gate Co., custom wrought iron and cedar-clad estate gates carry significant weight. Standard hinges can wear over time, causing gate leaves to drop or sag. We install heavy-duty, greaseable ball-bearing hinges to restore balanced swing geometry and reduce strain on your opener.

V-Groove Sliding Gate Track and Roller Repairs

Sliding gates depend on a level track anchored across the driveway. Surface settling can cause uneven sections where water pools or where rollers catch. We service uneven track sections, replace worn steel or UHMW poly rollers, and align guide rollers to improve smooth operation.

4. Photo-Eye Safety Sensor and Loop Detector Calibration

If your gate starts closing and immediately reverses, or does not close unless an override is held, the issue is often related to a safety loop or misaligned photo-eye sensor.

Resolving Unintended Safety Reversals

Automated gates incorporate safety devices to reduce entrapment risks per UL 325 guidelines. Common sensor issues include:

• Optical Sensor Misalignment: Ground or post movement can shift mounting brackets, interrupting the infrared beam.
• Environmental Interference: Sunlight glare, spider webs, lens condensation, and insects can obstruct optical sensors.
• In-Ground Loop Detectors: Pavement shifting can damage loop wires buried in asphalt or concrete, triggering false vehicle detection signals.

Our technicians test loop frequency, adjust optical alignment, and install protective sensor hoods where appropriate.

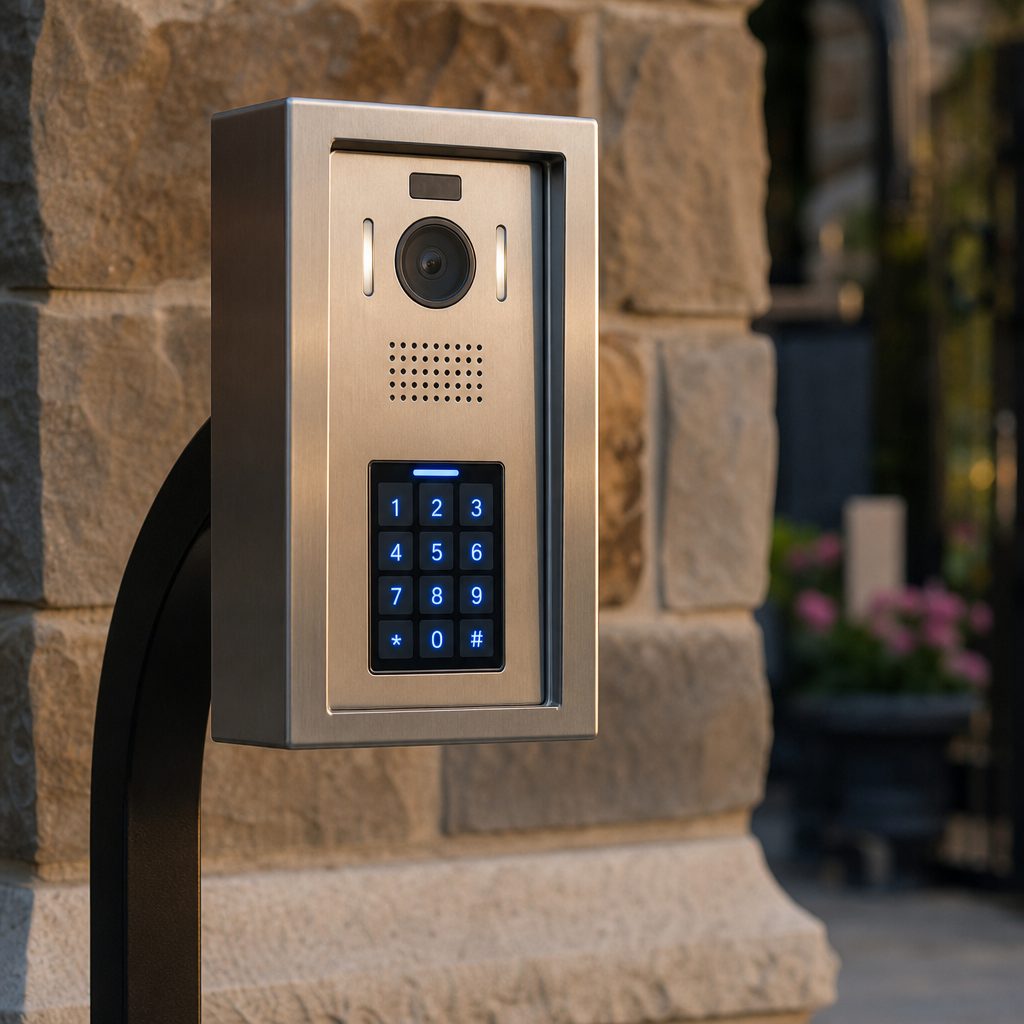

5. Keypad, Intercom, and Telephone Entry Modernization

Older installations often rely on legacy telephone entry systems wired into copper lines. As landline infrastructure changes, these units may encounter communication errors or dropped connections.

Retrofitting Legacy Access Systems

We provide upgrades to existing access pedestals using modern cellular modules and IP-based video intercoms, allowing property owners to:

• View live video of visitors from a mobile device.
• Issue temporary digital guest PIN codes for service providers or deliveries.
• Control gate access remotely through supported applications.
• Maintain an access log for entry activity.

6. Circuit Board and Electrical Surge Troubleshooting

North Texas weather includes severe thunderstorms that can produce electrical surges on utility lines. In addition, outdoor control enclosures are subject to environmental and biological interference.

Power Spikes and Pest Intrusion

Control boxes can attract insects and small pests seeking warm enclosures, which may short-circuit low-voltage components. We inspect and seal enclosures, service damaged circuit traces where possible, and install surge protection devices to help safeguard gate electronics.

7. Preventative Maintenance and Safety Inspections

An automated gate is an active mechanical system exposed to weather and continuous operation. Regular maintenance helps keep gates operating reliably.

Annual Estate Gate Maintenance Checklist

1. Hinge and Bearing Lubrication: Applying appropriate grease to heavy swing hinges and roller bearings.
2. Chain and Drive Belt Tensioning: Adjusting slide gate drive chains to maintain proper tension and minimize wear.
3. Battery Backup Diagnostics: Testing backup batteries to verify proper operation during power outages.
4. Safety System Calibration: Checking obstruction sensing and safety reversal functions under UL 325 guidelines.
5. Manual Release Testing: Verifying that manual disconnect hardware functions properly for emergency access.

Automated Gate Brands Serviced in Southlake TX

Our technicians are trained to service, repair, and program standard residential and commercial operator brands, including:

• LiftMaster / Chamberlain: CSW24V, CSL24V, LA400, LA500, HCT, and myQ access equipment.
• DoorKing (DKS): 6050, 6100, 6300, 9050, 9150 series operators and 1812 / 1830 series entry panels.
• Viking Access Systems: G-5, H-10, K-2, and T-21 swing and slide systems.
• Nice Apollo: 1550, 1650, 7251, and 7351 linear actuators and control boards.
• FAAC: 400, 402, 412, and 746 hydraulic operators and linear swing arms.
• HySecurity: SlideDriver, SwingRiser, and StrongArm barrier systems.

Company Price Estimates for Gate Repair

Every gate issue requires individual evaluation. Below are company price estimates and representative cost ranges for typical gate repairs (actual pricing depends on site inspection and system specifications):

Service Type	Estimated Cost Range	What Is Included
Diagnostic Service Call	$95 – $165	Electrical, sensor, and structural alignment evaluation
Start Capacitor / Relay Replacement	$185 – $350	Component replacement and motor load testing
Safety Sensor / Loop Repair	$220 – $480	Photo-eye realignment, sensor replacement, or loop module tuning
Hinge Re-welding & Roller Swap	$250 – $600	Heavy-duty ball-bearing hinge welding or new V-groove rollers
Control Board Replacement	$450 – $950	OEM board swap, wiring, limit programming, and remote syncing
Post Realignment & Re-footing	$650 – $1,800	Excavation, footing stabilization, re-plumbing post, and latch alignment
Complete Operator Replacement	$1,800 – $3,800	Removal of old unit, new commercial-grade operator, battery backup, and setup

Frequently Asked Questions About Southlake Gate Repair

Who provides automatic gate repair services in Southlake TX?

Ironworks Gate Co. provides automated gate repair services across Southlake, Westlake, and Colleyville, focusing on component-level repairs, post realignment, and system diagnostics.^[5]

How much does electric driveway gate repair cost in Southlake?

Based on our company estimates, standard mechanical and electrical repairs (such as replacing safety photo-eyes, capacitors, or hinge hardware) typically range from $220 to $600. Major structural repairs or operator replacements can range higher depending on equipment type and site conditions. We provide itemized written estimates prior to starting repair work.

What repair scheduling options are available in Southlake?

We provide prompt local service across Southlake and surrounding communities. When a gate is malfunctioning or access is restricted, our technicians can be scheduled to inspect the system, complete diagnostics, and recommend needed repairs.

What types of gates and access control systems can be repaired locally?

We service residential and commercial gate installations, including ornamental iron swing gates, wood privacy gates, sliding cantilever gates, and barrier arms. We also service associated access control devices, including cellular entry panels, wireless keypads, loop detectors, radio receivers, and solar power setups.

What are common signs that a driveway gate opener may need replacement?

While many issues can be addressed through component replacement, an operator upgrade may be recommended if:

• The unit is 15-20 years old and replacement boards or gearsets are discontinued.
• The motor housing has cracked or suffered significant internal hydraulic leaks.
• The system lacks modern monitored safety inputs required by current UL 325 standards.
• Cumulative repair costs approach the cost of a modern operator with modern safety and control features.

How do I choose a gate repair and maintenance contractor in Southlake?

Consider choosing a contractor with specific experience in automated gate systems and low-voltage controls. Look for technicians familiar with UL 325 safety protocols who provide clear written estimates and have experience addressing local soil and structural conditions.

For driveway gate service in Southlake, contact Ironworks Gate Co. to schedule a diagnostic inspection.

Sources

1. Southlake's Median Home Price Is Measuring Four … – hackerpropertygroup.com (2026)
2. Southlake, TX Housing Market & Rental trends – realtor.com (2026)
3. Southlake, TX Housing Market: 2026 Home Prices & Trends – Zillow – zillow.com (2026)
4. Is Southlake a Buyer's Market Now? What the 2026 … – rileyriverrealty.com (2026)
5. Southlake Luxury Real Estate Market: 3 Seller Signals – jeannieandersongroup.com (2026)

Related reading: Licensed Gate Repair Southlake Tx | Call Now-10% Off | On-Site in 60 Minutes | Free Estimate

Related reading: Same Day Automatic Gate Repair Southlake | 10% Off & Free Estimate | On-Site in 60 Minutes

Related reading: Ironworks Gate Co Southlake Reviews – Call Now-10% Off – Same-Day Service – Free Estimate

Frequently Asked Questions

How does Ironworks Gate Co. fix automatic gate posts that tilt due to Southlake's clay soil?

Technicians stabilize shifted posts by excavating around displaced footings, anchoring deeper reinforced concrete bases below active clay layers, and realigning heavy-duty hinges. Ironworks Gate Co. re-plumbs the structural posts and recalibrates operator force limits to prevent ongoing mechanical strain on your motor.

Can an automated gate motor be repaired instead of replaced after a lightning surge?

Yes, North Texas electrical surges often damage discrete low-voltage components, such as start capacitors, surge suppressors, or terminal boards, rather than burning out the motor. Ironworks Gate Co. diagnoses and repairs individual electrical sub-components on-site to help property owners avoid premature operator replacements.

How can I safely open an electric driveway gate manually if the operator loses power?

Most residential operators feature an internal bypass lever or key-operated mechanical disconnect on the drive chassis that disengages the drive arm or chain. If shifting soil or hinge binding prevents the gate from moving freely in manual mode, Ironworks Gate Co. provides same-day dispatch across Southlake to safely release and realign the system.
