Southlake Gate Repair Services: Restorations and Local Troubleshooting

When an automated driveway gate refuses to open, stops halfway, or drags, property owners need southlake gate repair services that address mechanical or electrical faults. Southlake has a 95.5% owner-occupied housing rate and an approximately $1,014,500 median value for owner-occupied housing units. Whether dealing with a misaligned swing gate or an unresponsive slide gate, technicians focus on targeted repairs, hinge servicing, and electrical troubleshooting based on case-specific inspection.^[1]

Local Southlake Gate Repair Services: What to Expect

A malfunctioning gate can restrict vehicle access or leave a property unsecure. Professional gate technicians, such as those at Ironworks Gate Co., evaluate mechanical strain, electrical failure, and safety sensor faults during an on-site inspection.

During an inspection, technicians evaluate the operating assembly:

• Physical balance and hinge integrity: Checking if the gate moves freely without motor assistance or binds due to structural shifting.
• Drive hardware and gearboxes: Inspecting internal sprockets, chains, hydraulic fluid levels, and drive arm bushings.

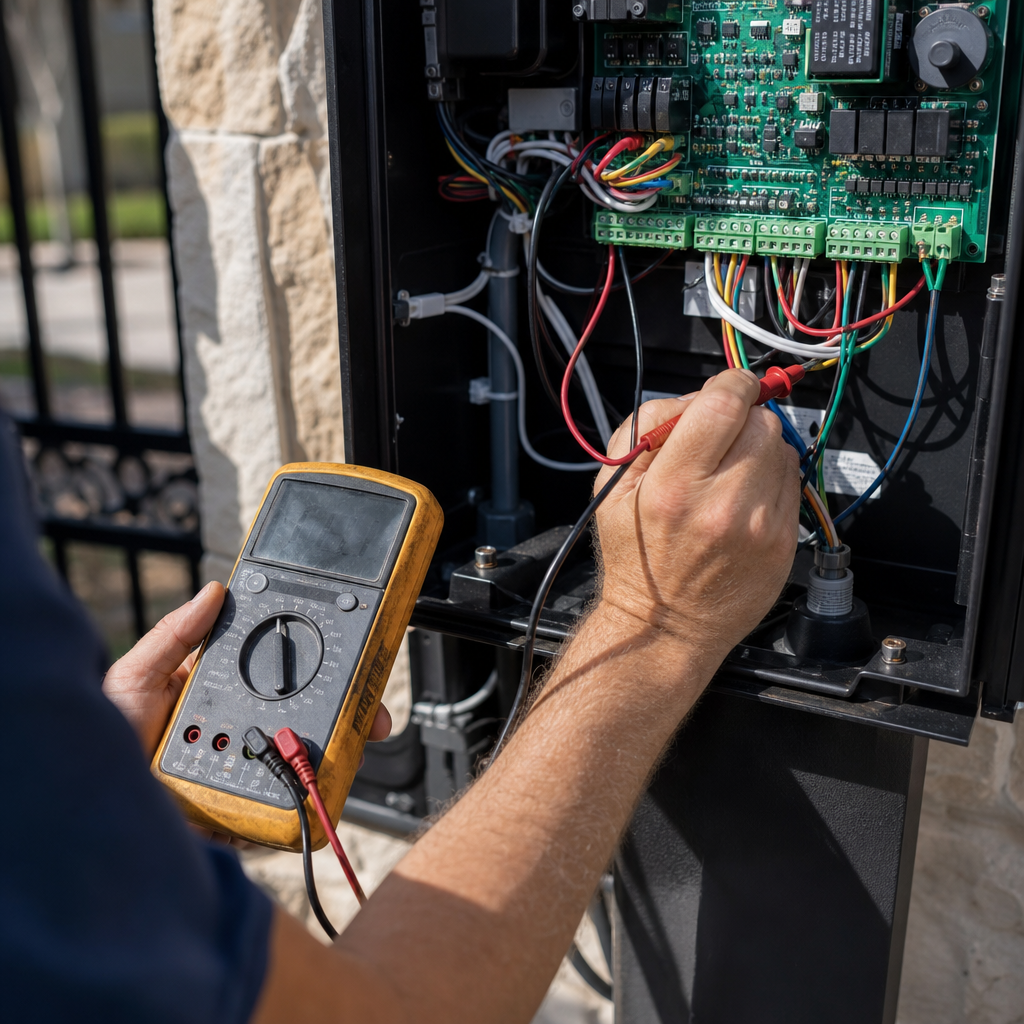

• Electrical delivery: Testing voltage under load, checking backup battery condition, and inspecting logic boards for damage.
• Entrapment protection devices: Verifying that UL 325 safety devices, including photo-eyes and contact edges, function properly.

Immediate Diagnostics and Direct Problem Solving

Gate issues frequently stem from mechanical drag that places strain on the electric operator. A trained technician isolates whether an issue is electrical (such as a control board fault or a misaligned safety sensor) or structural (such as an un-plumb post). Pinpointing the exact point of failure helps identify appropriate repair options.

Accurate On-Site Quotes and Assessments

Property owners should receive a clear quote following an on-site evaluation. Depending on the diagnosis, issues may be resolved by replacing wear-items such as capacitors, limit switches, or secondary relay boards, while other situations may warrant structural work or operator replacement based on case-specific findings.

Automatic Gate Repair in Southlake, TX

Professional automatic gate repair in Southlake, TX addresses erratic gate movements, sudden auto-reversals, and motor operator failures directly at driveway entrances. Precision diagnostics help restore dependable access.^[4]

Signs Your Automated Gate Needs Service

Addressing mechanical wear early helps prevent component friction from damaging drive motors. Signs that service may be needed include:

• The gate opens partially, hesitates, or reverses direction.
• Grinding, squealing, or clicking noises come from the motor housing during travel.
• The gate leaf visibly sags or drags across the driveway surface.
• The system operates noticeably slower than normal or struggles during cold conditions.
• Remote controls and wireless keypads work intermittently or only at close range.

Fixing Limit Switch and Obstruction Sensor Failures

When an automated gate stops short or reverses without an obstacle in the driveway, the safety circuit or travel limits may require calibration:

1. Optical Realignment: Clean, adjust, and securely mount infrared safety photo-eyes that have shifted out of alignment.
2. Limit Switch Indexing: Reset mechanical, magnetic, or optical limit switches to establish proper slowdown and positive stop points.
3. Amperage and Current Sensing Calibration: Adjust control board force margins so the gate stops safely for true obstructions without nuisance-tripping during normal operation.

Gate Opener Repair for Driveway Systems

Gate opener repair restores property access by servicing internal mechanical drives and electrical controls. Heavy gates place continuous strain on operator gearboxes, particularly when hinge wear or post movement alters gate geometry.

Diagnosing Worn Gears, Capacitor Failures, and Motor Overheating

Electric operators rely on initial startup torque. Over time, internal run capacitors can degrade, causing the motor to hum without turning the output shaft. Internal drive gears can also wear down under mechanical resistance. A qualified gate technician from Ironworks Gate Co. tests capacitor ratings under load, inspects gear condition, and checks thermal overload switches to restore proper motor output.

Servicing Control Systems and Operator Components

Many properties feature heavy-duty operator chassis from brands such as LiftMaster, DoorKing, Viking, or FAAC. A case-specific inspection helps determine whether servicing an existing control board or installing a replacement operator is appropriate based on equipment condition and pricing estimates.

Electric Gate Repair and Access Control Diagnostics

A gate operator depends on reliable access equipment. Electric gate repair addresses low-voltage wiring, keypad inputs, vehicle loop detectors, and telephone entry communication lines.

Keypads, Telephone Entry, and Cellular Intercoms

When visitors cannot call through the gate or keypad codes fail, technicians trace low-voltage DC power runs and data connections. Technicians can service existing wiring, reprogram entry codes, or install modern cellular-based entry systems.^[5]

Surge Protection and Underground Wiring Faults

Electrical surges from storms can damage sensitive gate logic boards. Additionally, direct-burial low-voltage wiring can degrade over time due to ground disruption or landscape work. Specialized wire-fault locators help pinpoint underground opens and short circuits.

Structural Alignment and Post Stabilization

Structural shifting can affect automated gate operation. When support posts shift out of plumb, the attached gate leaves can drop, causing ground drag or latch misalignment.

How Post Misalignment Affects Motors and Hinges

When a support post moves out of vertical alignment, a swing gate leaf can drop at the latch side, creating drag or misaligning the receiver catch. When an electric gate opener pulls against a misaligned or dragging leaf, the motor draws excess current, which can trip thermal breakers or cause internal gear wear.

Post Stabilization and Alignment

Technicians from Ironworks Gate Co. address leaning posts by inspecting the mounting structure, re-plumbing the posts, and reinforcing support connections. In Southlake, city permit reporting applies to fences and property improvements, making it important to confirm local standards when undertaking structural modifications.

Driveway Gate Repair: Restoring Alignment, Hinges, and Track Rollers

Physical drag impedes automated operation. Restoring mechanical balance protects the motor and supports smooth movement.

Eliminating Ground Drag and Driveway Scraping

If a gate scrapes across the driveway, forcing the opener to move it can cause motor damage. Technicians evaluate whether sag originates from worn hinge pins, bent mounting brackets, or shifted posts to re-establish proper clearance.

Hinge and Track Roller Maintenance

Structural adjustments on driveway gates often involve heavy-duty hardware:

• Heavy-Duty Hinges: Replacing worn hinges with sealed or greaseable units that distribute dynamic weight properly.
• V-Groove and Cantilever Rollers: Replacing worn or seized slide gate wheels with heavy-duty rollers.
• Track Alignment: Securing loose tracks and realigning ground guides to eliminate binding during slide travel.

Gate Types Serviced

Different gate styles feature distinct mechanical load points:

Wrought Iron and Ornamental Steel Gates

Heavy steel gates carry substantial weight. Technicians at Ironworks Gate Co. reinforce mounting plates, service weld joints, and balance leaves to prevent excess stress on actuator arms.

Sliding and Cantilever Gates

Slide gates require clean tracking and aligned guide rollers. Technicians repair chain brackets, align internal guide assemblies, and level tracks so the gate moves freely.

Dual and Single Swing Driveway Gates

Swing systems require synchronized geometry. Linear actuators, articulated arms, and underground hydraulic operators must be mechanically timed so dual gates open and close in proper sequence.

Custom Wood Privacy Gates

Solid wood infill adds weight and surface area to an entrance. Wind resistance against solid panels can place added torque on hinges and operators, requiring appropriate structural frames and heavy-duty hardware.

Automated Gate Hardware Servicing

Technicians service major residential and light commercial gate automation hardware, providing board repairs, clutch adjustments, and programming for various brands:

• LiftMaster: Servicing LA400, LA500, CSW24, and CSL24 systems, including access diagnostics, receiver programming, and battery backup replacements.
• DoorKing (DKS): Servicing 6050, 6100, and 9050 operators, along with telephone entry systems.
• Viking Access: Troubleshooting G-5, H-10, and T-21 operators, including digital control boards.
• Nice Apollo: Repairing swing and slide actuators, solar regulators, and current limiters.
• FAAC, Eagle, and BFT: Servicing hydraulic swing arms, low-voltage electromechanical operators, and access controls.

Gate System Installation and Replacement

While component repairs resolve many operational issues, full system replacement may be necessary when severe corrosion, collision damage, or structural fatigue compromises the frame, or when an obsolete operator lacks essential safety features. In such cases, technicians can evaluate custom replacements matched with appropriate commercial-grade operators.

What Do Southlake Gate Repair Services Cost?

No reliable Southlake-specific price was verified for automated gate repair. Costs vary based on the specific diagnosis, required parts, labor, and whether the solution involves minor component repair or full operator replacement. Minor adjustments, such as sensor realignments or capacitor replacements, differ in cost from extensive structural repairs or operator replacements. Property owners should expect an on-site diagnostic inspection and a detailed estimate outlining parts and labor before repair work begins.^[2]

Safety Considerations for Automated Gates

Automated gate operators exert significant mechanical force. Modern installations should comply with UL 325 safety standards, which require primary and secondary entrapment protection devices. If a gate lacks functioning photo-eyes, fails to reverse when contacting an obstruction, or trips an electrical breaker, set the unit to manual release mode and schedule an inspection.

Frequently Asked Questions

How much does automatic gate repair cost in Southlake, TX?
No reliable Southlake-specific price was verified. Costs vary depending on the diagnosis, parts, labor, and whether the repair involves component servicing or operator replacement. An on-site inspection is necessary to determine specific pricing.

Who provides emergency driveway gate repair in Southlake?
The available research did not verify a specific emergency driveway gate repair provider in Southlake. The City of Southlake provides a channel for non-emergency residential issues.

Why is my electric gate not opening or closing properly?
Common causes include misaligned optical safety sensors, worn motor capacitors, damaged logic boards, or mechanical binding from misaligned hinge posts.

How often should residential automatic gates be serviced?
No universal service interval was verified. A qualified technician from Ironworks Gate Co. should set the schedule based on usage, weather exposure, gate weight, and manufacturer instructions.

Can you repair access control systems and keypads on automatic gates?
Yes. Technicians troubleshoot and service digital keypads, vehicle loop detectors, wireless remote receivers, and telephone or intercom entry systems.

Do local gate technicians service both swing and slide gate openers?
Technicians generally service common operator configurations, including linear actuator swing arms, articulated arm operators, underground hydraulic systems, and chain-driven slide gates.

Do gate modifications in Southlake require building permits?
The City of Southlake reports permits for fences and related property improvements. Property owners should confirm whether a proposed gate modification requires a permit before starting work.^[3]

Sources

1. U.S. Census Bureau QuickFacts: Southlake city, Texas – census.gov (2024)
2. Owner-Occupied Housing Units (Census ACS) – flhealthcharts.gov (2024)
3. U.S. Census Bureau QuickFacts: Southlake city, Texas – census.gov (2023)
4. Southlake, TX - Things to Do, Dining & Living in Southlake, Texas… – easttexas.com (2026)
5. Southlake, TX – Profile data – censusreporter.org (2024)

Frequently Asked Questions

How does North Texas clay soil affect driveway gate alignment, and how is it repaired?

Expansive clay soil in Southlake expands and shrinks during seasonal moisture shifts, causing support posts to lean and gate leaves to drag across the driveway. Ironworks Gate Co. diagnoses post misalignment, re-plumbs shifted structural posts, and reinforces mounting footings to prevent motor strain and structural binding.

Can older estate gate operators be retrofitted with modern cellular access controls and safety sensors?

Yes, legacy residential systems from brands like LiftMaster, Viking, and DoorKing can be upgraded with modern cellular intercoms, keypads, and UL 325-compliant safety photo-eyes. Ironworks Gate Co. specializes in legacy estate access automation, allowing homeowners to modernize entry security without replacing their existing gate structure.

How do I schedule same-day gate repair service and upfront pricing in Southlake?

Homeowners can call Ironworks Gate Co. directly to book a free on-site gate assessment with rapid same-day diagnostic service. Our technicians evaluate both mechanical hardware and electrical controls on-site, providing clear, upfront fixed pricing before any restoration begins.
