Sagging Swing Driveway Gates Repair: Structural Restoration and Realignment

When a swing gate drags across the ground or fails to latch properly, sagging swing driveway gates repair restores proper alignment and helps protect your automation equipment. As specialists at Ironworks Gate Co. observe, gate sagging may involve loose or damaged hinges, fasteners, posts, frames, welds, or general misalignment. When a gate leaf leans out of plumb, it places additional strain on the hinges and the operator mechanism.^[3]

Binding or misalignment can increase strain on an operator and may contribute to abnormal wear or failure. According to recommendations from Propertymark and the Hong Kong Buildings Department, metal swing gates should feature three hinges per leaf or include a safety tether as a fall-protection device to help prevent the leaf from falling if a hinge fails.^[1] See also Gate Repair How to & Troubleshooting Guides in Southlake | Call Now-10% Off | On-Site in 60 Minutes | Free Estimate.

Safety Warning: If a gate binds, sags severely, or has damaged attachments, stop automatic operation immediately and obtain a qualified inspection before continuing use.

Understanding the Causes of Swing Gate Sag

Over time and regular use, several mechanical and structural factors can cause swing gate leaves to drop:

Post and Foundation Movement

Gate posts or footings may shift or tilt over time under the hanging weight of the gate leaf or changing ground conditions, leading to noticeable drop and latch misalignment.

Hinge Wear and Component Damage

Heavy swing gates place continuous load on hinge hardware. Hinges and pins can wear over time, creating play that allows the gate leaf to sag. Guidance from the Hong Kong Buildings Department recommends three hinges per leaf on metal swing gates, along with regular quarterly inspections of welds, hinges, and structural fixings to identify wear or defects early.^[2]

Frame Sag and Weld Fatigue

Gate leaves can experience frame deflection or cracked welds over time under normal service loads. According to Ironworks Gate Co., when frame joints lose rigidity, adjusting hinge hardware alone may not fully resolve the misalignment.

What You Need for Professional Gate Realignment

Correcting structural gate drop requires appropriate lifting, welding, and leveling equipment designed to handle heavy loads safely.

Diagnostic and Leveling Equipment

• Machinist levels or laser levels to verify post plumb and swing-plane alignment.
• Mechanical jacks and cribbing blocks to support gate leaf weight during service.
• Measuring tools to check hinge pin wear and bracket tolerances.

Welding and Structural Hardware

• Welding equipment for frame repairs and post reinforcement.
• Replacement hinges suited to the gate leaf weight and configuration.
• Steel reinforcement materials for posts or frames where structural stiffening is required.
• Safety tethers for fall protection and positive mechanical stops.

Step-by-Step Swing Gate Realignment and Repair

Step 1: Isolate the Operator and Diagnose Structural Deflection

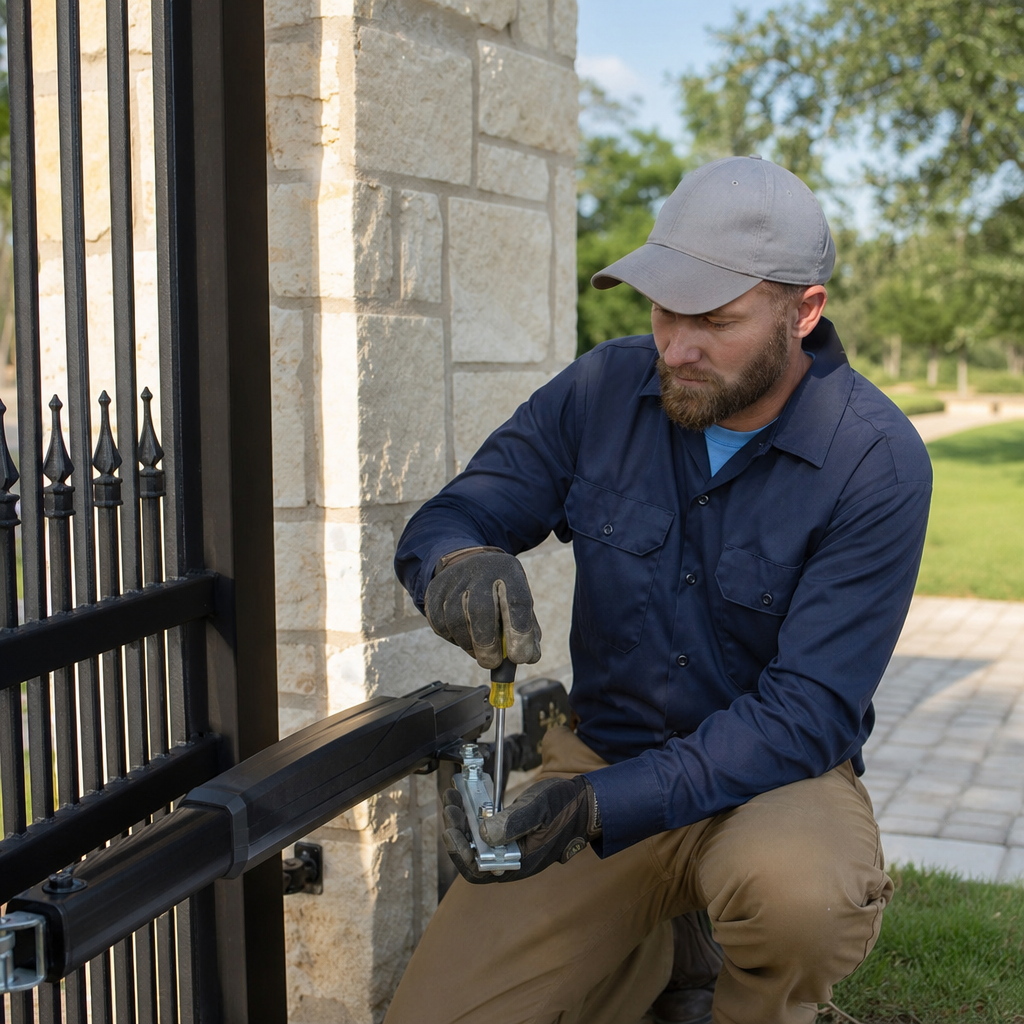

Technicians at Ironworks Gate Co. begin by disconnecting the automatic opener arm from the gate leaf bracket. Binding or misalignment can increase strain on an operator and may contribute to abnormal wear or failure. Once isolated, the technician inspects post plumb, hinge condition, and frame squareness to identify whether the sag stems from post movement, hinge wear, or frame deflection.

Step 2: Support the Leaf and Evaluate Swing Arc Clearances

Using jacks and cribbing, the technician supports the weight of the gate leaf. The leaf is tested manually through its swing arc to check for binding, ground clearance issues, or hinge resistance across its path of travel.

Step 3: Repair Hinges, Posts, or Frame Assemblies

Depending on the diagnosis, structural restoration may involve one or more of the following procedures:

• Hinge Replacement or Adjustment: Replacing worn hinges or configuring hinges in a three-hinge pattern per Propertymark and Hong Kong Buildings Department recommendations.
• Post Reinforcement: Reinforcing or straightening a leaning post using structural steel sleeves, gussets, or footing repairs.
• Frame Realignment: Adding diagonal bracing or repairing joint welds to pull a deflected frame back into square.

Step 4: Install Positive Mechanical Stops and Safety Tethers

Positive stops help prevent a gate from swinging beyond its intended stopping point and damaging the gate, hinges, latch, or operator. Technicians may also install a safety tether between the gate frame and hinge post to serve as a fall-protection device if a hinge connection fails.^[5]

Step 5: Adjust Opener Limits and Obstruction Settings

Once the gate leaf swings freely without binding, the automation arm is reconnected. Technicians adjust the open and close limit settings and verify obstruction sensitivity to ensure the operator functions smoothly without excessive mechanical strain.

Estimated Costs for Sagging Driveway Gate Repair

Note: The following cost ranges are unverified estimates. Actual repair costs require an on-site inspection and a written quote.

• Basic Hinge Realignment and Service: $150 to $350 (unverified estimate for hinge adjustments, lubrication, and stop alignment).
• Hinge Replacement and Welding: $350 to $750 (unverified estimate for hinge replacement, weld repairs, and minor structural fixes).
• Frame Straightening and Bracing: $300 to $600 (unverified estimate for frame realignment and diagonal bracing).
• Post Sleeving and Footing Reinforcement: $800 to $1,800+ (unverified estimate for post reinforcement, gusseting, or foundation stabilization).

Frequently Asked Questions

Why is my swing driveway gate sagging in the middle?

A swing gate may sag in the middle due to loose or damaged hinges, worn hinge pins, post movement, cracked frame welds, loose fasteners, or general structural misalignment over time.

How do I fix a sagging metal driveway gate?

For minor wear on adjustable hinges, adjusting the threaded hinge components can lift the latch side. As noted by Ironworks Gate Co., if hinges are severely worn, welds are cracked, or the post is leaning, repair requires supporting the leaf and re-welding hinges, adding diagonal bracing, or reinforcing the post.

Can a sagging automatic gate damage the gate opener motor?

Yes. Binding or misalignment can increase strain on an operator and may contribute to abnormal wear or failure of the drive system and mounting components.

When should I replace gate hinges versus adjusting them?

Adjust hinges if they have functional adjustment mechanisms and the post and frame remain plumb and secure. Replace hinges if there is visible metal wear, loose hinge pins, cracked welds, or structural damage. Propertymark and the Hong Kong Buildings Department recommend a three-hinge configuration for metal swing gate leaves.

How do anti-sag gate kits or turnbuckle braces work on iron gates?

According to Ironworks Gate Co., an anti-sag brace or turnbuckle installs diagonally across the gate frame. Adjusting the brace places the diagonal in tension, helping to lift the sagging latch side and support frame alignment.

How often should automated driveway gates be inspected?

Under Hong Kong Buildings Department guidance, relevant metal gate components such as welds, hinges, and structural fixings should be inspected every three months. According to Propertymark, automated gate systems should be serviced at least every six months, with more frequent service recommended for high-use gates.^[4]
