Gate Repair Southlake – Call Now-10% Off – On-Site in 60 Minutes – Free Estimate

Gate Repair Southlake: Same-Day Fixes for Luxury Estates

When an automated driveway gate stops halfway across the drive in Timarron or Monticello, you do not need a high-pressure pitch for a $15,000 replacement. You need a technician who knows how to diagnose whether the issue is a dead logic board, a tripped safety circuit, or physical hinge binding. Ironworks Gate Co. provides same-day diagnostic dispatch and targeted gate repair in Southlake, backed by clear, fixed-price quotes before any work begins.

General fencing contractors and handymen often struggle with automated gate electronics. They misread diagnostic codes, replace parts at random, or recommend tearing out functioning systems. Our technicians bring dedicated access-control training and mobile welding equipment directly to your property. We fix the root mechanical and electrical issues on the first visit, keeping your property secure without unnecessary replacements.

Fast Gate Repair in Southlake: Diagnostics, Emergency Dispatch, and Common Fixes

Fast Gate Repair in Southlake: Diagnostics, Emergency Dispatch, and Common Fixes in brief: Professional gate repair in Southlake TX addresses motor stalls, sagging posts, misaligned safety sensors, and board-level electrical faults. Most service calls that appear to be dead motors turn out to be safety force-limit shutdowns triggered by physical drag or minor alignment shifts. Ironworks Gate Co. offers same-day emergency dispatch across Southlake with fully stocked trucks, upfront pricing, and on-site welding capabilities.

When an entrance gate fails, vehicles get trapped behind security lines, and estate perimeters sit exposed. Emergency calls receive prioritized dispatch to restore manual or automated access quickly. Technicians run electrical tests on the power supply, check logic circuits, inspect the mechanical swing or slide track, and provide an exact, flat-rate price to fix the issue.

Immediate Triage for Trapped Vehicles and Stuck Gates

If your gate will not open and your car is stuck inside the driveway, the first priority is safely releasing the drive mechanism. Operators from brands like LiftMaster, Viking, and DoorKing feature manual release keys or quick-disconnect pins. Our technicians can walk you through manual release steps over the phone before arrival, or quickly disconnect the drive arm on-site to get your vehicles moving before beginning diagnostic work.

What to Expect During Your Initial Diagnostic Visit

Every service call follows a step-by-step diagnostic process to pinpoint the exact failure:

1. Power Supply and Board Checks: Testing primary 120V line voltage, step-down transformers, solar charge controllers, and 12V/24V battery backups under load.
2. Safety Loop and Sensor Audit: Testing infrared photo-eyes, safety edges, and underground inductive vehicle loops for signal shorts or alignment drift.
3. Mechanical Alignment Inspection: Checking hinge barrel wear, post level, track straightness, and arm pivot bushings for physical drag.
4. Upfront Written Estimate: Providing a clear quote outlining parts and labor before any tools touch the gate.

Automatic Gate Repair in Southlake TX

Modern automated gates depend on low-voltage logic systems communicating with high-torque electric motors. A single failed limit switch or insect nest inside a photo-eye housing can stop the entire system from operating.

Common Automatic Gate Failure Symptoms

Automated systems usually show distinct warning signs before total failure:

• The gate opens a few feet, reverses direction, and stays open.
• The operator motor hums or clicks, but the gate leaf does not move.
• Keypads beep during entry, but the gate does not trigger.
• The gate opens fine during the day but fails to operate during cold mornings.

Restoring Automated Safety and Reversal Mechanisms

Under UL 325 safety standards, gate operators must immediately reverse or stop if they detect an obstruction. Over time, road vibration and weather shift infrared photo-eye sensors out of alignment. If the beam does not hit the receiver cleanly, the control board assumes a vehicle or person is in the path and prevents closure. We realign, clean, and reseal safety sensors, inspect reflective hoods, and replace frayed monitored edge wiring to get the system cycling safely again.

Gate Opener Repair Southlake: Restoring Smooth Motor and Arm Function

A gate opener works under substantial physical load. Swing gate actuators and sliding gate chain drives take the brunt of daily wind resistance and physical weight. Rebuilding mechanical components is often far more practical and affordable than replacing the entire operator.

Linear Actuator vs. Overhead and Articulated Arm Issues

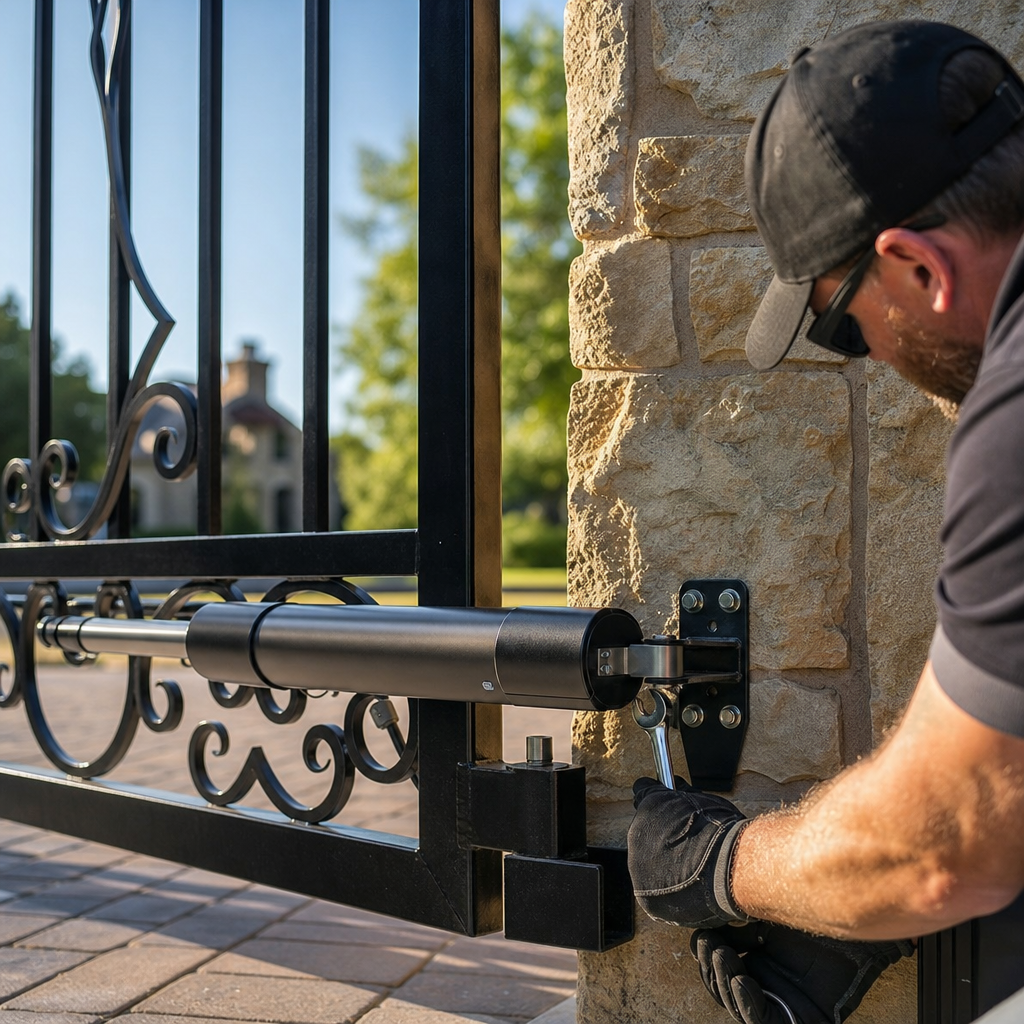

Linear actuators use internal lead screws or hydraulic cylinders to push and pull swing gates. When water penetrates worn seal boots, internal bearings corrode, leading to high electrical draw and thermal shutdowns. Articulated arm operators, frequently installed on wide stone pillars, suffer from worn bronze elbow bushings that create slop in the swing path. Replacing worn pins, rebuilding internal gear housings, and re-greasing drive screws restores quiet operation without swapping the entire unit.

Addressing Grinding Gears, Dead Capacitors, and Worn Limits

When an AC operator motor simply hums when activated, the starting capacitor is often drained. In DC operators, brush wear or board-level output relays are more common culprits. Ironworks Gate Co. technicians carry standard industrial capacitors, OEM limit switch assemblies, and drive sprockets on their trucks, enabling quick on-site rebuilds during the initial service call.

Electric Gate Repair Southlake: Power Surges, Wiring, and Circuit Boards

North Texas weather brings severe electrical storms, extreme heat, and sudden cold snaps, all of which challenge outdoor gate electronics.

Diagnosing Underground High-Voltage and Low-Voltage Feed Lines

Buried direct-burial wiring between the house, keypads, and operator chassis is vulnerable to shifting earth and rodent damage. Technicians use megohmmeters to trace underground ground faults and breaks without digging up the entire driveway. We isolate bad loops, rewire weathered junction boxes, and seal entry conduits to keep out fire ants and moisture.

Lightning Damage, Power Surges, and Motherboard Replacement

Lightning strikes frequently induce high-voltage spikes along copper sensor wiring and 120V feeder lines, frying microprocessor chips on the main control board. When this happens, our technicians swap out burned logic boards, transfer existing wireless receiver cards, reprogram travel limits, and install secondary surge suppressors to shield the new electronics from future weather events.

Gate Installation in Southlake: Custom Engineered Systems Built for Local Soil

Installing an automated gate in Southlake requires proper structural engineering to account for local ground movement. A heavy ornamental gate acts as a long lever arm; even a fraction of an inch of post tilt at the ground level translates into several inches of drop at the latch end.

Deep Foundation Footings Engineered for Blackland Clay

Standard shallow footings poured 24 inches deep move easily with seasonal rain and dry periods. For long-term stability, gate posts should be anchored into drilled concrete piers sunk 36 to 48 inches deep, penetrating past topsoil layers. This prevents post deflection and stops gates from dragging across driveways.

Matching Architectural Aesthetics in High-End Subdivisions

Properties in developments like Clariden Ranch and Carillon have distinct architectural guidelines. We install custom iron, steel-backed cedar, and modern composite systems that complement existing masonry columns, matching decorative scrollwork, powder-coat finishes, and access hardware to neighborhood design standards.

Driveway Gate Repair Southlake: Resolving Sagging, Dragging, and Structural Wear

Heavy driveway gates place steady torque on their mounting hinges. Over years of operation, hinge pins wear down, hinge plates crack along weld seams, and gate frames begin to sag, dragging bottom edges across concrete aprons.

Re-Hanging Heavy Driveway Gate Leaves

When a gate drags on the driveway, increasing the motor force limit is a mistake that accelerates gearbox wear. The correct repair is purely mechanical: releveling the hinges, replacing worn ball-bearing assemblies, and re-squaring the frame. Our mobile repair trucks are fitted with welders and heavy jacks to realign heavy steel leaves on-site.

Structural Reinforcement vs. Full Gate Replacement

A cracked hinge post or a sagging frame does not mean you need a brand-new gate. Targeted structural metalwork can restore full stability at a fraction of the cost.

Structural Defect	Targeted In-Field Repair	Unnecessary Replacement
Cracked Hinge Plate	Grind clean, weld gusset reinforcement, install greasable barrel hinge	Replacing entire gate leaf
Apron Drag / Sag	Install adjustable diagonal tension rod or weld internal steel truss	Tearing out and refabricating gate
Post Movement / Leaning	Excavate footing collar, plumb post, pour reinforced steel-tied collar	Replacing complete entry system

Iron and Wrought Iron Gate Repair in Southlake Estates

Custom iron gates provide security and curb appeal, but sprinkler overspray, hard water deposits, and heat can degrade their protective coatings over time.

Rust Treatment, Powder Coating Touch-Ups, and Picket Welding

Corrosion often starts at bottom rail joints and decorative scroll connections where moisture collects. Our technicians cut out corroded iron sections, weld in fresh solid-steel pickets, grind weld points clean, and apply zinc-rich primer with UV-resistant topcoats to halt rust penetration.

Restoring Structural Integrity to Heavy Decorative Ironwork

Dual ornamental iron leaves can weigh 400 to 800 pounds each. That weight demands heavy-duty, sealed ball-bearing hinges with grease zerks. We replace seized, unserviceable factory hinges with commercial-grade weld-on barrel hinges that swing with minimal physical resistance, taking unnecessary strain off the electric operator.

Sliding Gate and Cantilever Gate Repair in Southlake

Sliding gates present distinct mechanical failure points, particularly along ground tracks and roller guide brackets. Dirt, small stones, and driveway settlement can easily throw a sliding gate off its path.

Track Cleaning, V-Groove Wheel Replacement, and Alignment

Standard V-groove wheels carry sealed bearings that eventually seize after years of rain and grit exposure. When a wheel seizes, it flat-spots along the steel ground track, overloading the chain drive operator. We jack up sliding panels, swap out damaged wheels for heavy-duty machined steel or UHMW quiet rollers, and anchor loose track sections back into the concrete driveway.

Cantilever Roller Adjustment and Guide Assembly Repair

Cantilever gates hang suspended without a ground track, relying on heavy post-mounted rollers to guide the tail rail. If guide rollers crack or guide posts shift out of plumb, the gate binds during travel. We realign guide assemblies, adjust bottom safety rollers, and retension drive chains to restore smooth, level travel.

Swing Gate Repair and Dual-Leaf Synchronization

Dual swing gates require clean timing and mechanical alignment so both panels meet properly in the center without catching or binding.

Synchronizing Master and Slave Operator Arms

In a dual-leaf system, the primary (master) gate must open slightly before the secondary (slave) gate, and the secondary gate must close first to let overlapping astragals or center latches seat correctly. If internal limit switches drift or communication cables between operators corrode, the panels collide. Technicians reprogram board-level open/close delays and set electronic soft-stop profiles to eliminate shuddering at the end of travel cycles.

Center Stop and Magnetic Lock Alignment

Magnetic shear locks and 1,200-pound electromagnetic face locks hold dual gates secure against wind and intruders. If ground shifting moves the center stop even half an inch, the lock plates fail to align, preventing the magnet from energizing or leaving the gate loose in the wind. We realign mechanical stops, re-shim magnetic armatures, and ensure positive latching on every cycle.

Wood and Composite Gate Restoration and Reinforcement

Solid cedar and composite driveway gates offer complete visual privacy, but North Texas moisture swings make them prone to warping and weight changes.

Correcting Frame Warping and Moisture Sag

Wood absorbs substantial moisture during rainy periods, adding hundreds of pounds to the total gate weight. Without adequate internal support, cedar gates warp and bow outward, misaligning safety sensors and dragging on driveways. We install diagonal steel cable turnbuckles and internal stiffeners to pull warped frames back into alignment.

Steel Internal Frame Upgrades for Heavy Wood Facing

The most permanent fix for a sagging wood gate is mounting the cedar pickets onto a welded steel structural frame. We retrofit custom steel subframes behind existing wood cladding. This maintains the clean wood exterior while anchoring the hinges and operator arm to rigid rectangular steel tubing that will never sag.

Parts and Components We Repair and Replace

A full gate system includes numerous mechanical and electronic parts working together. Our service trucks are stocked with common replacement components to complete repairs in one trip:

Gate Motors, Operators, and Gearboxes

We service and replace commercial-duty worm gear drives, brushless DC motors, hydraulic pump units, and emergency battery backup charging boards.

Access Keypads, Telephone Entry, and Smart Intercoms

We troubleshoot and install DoorKing telephone entry systems, LiftMaster CAPXL smart video intercoms, cellular access modules, and standalone digital keypads. We also reprogram handheld remotes, wireless vehicle transponders, and HomeLink garage-to-gate links.

Safety Photo-Eyes, Edges, and Ground Loop Detectors

We replace failing retro-reflective and through-beam photo-eyes, wireless safety edges, and inductive loop detector modules, retuning loop frequencies to prevent phantom opens and false reversals.

Top Gate Brands We Service: LiftMaster, DoorKing, Viking Access, and Nice Apollo

Our technicians work on all major residential and commercial gate automation platforms, carrying OEM diagnostic tools and genuine factory replacement parts.

LiftMaster and DoorKing Access Control and Commercial Operators

We repair the full LiftMaster line, including LA400, LA500, CSW24V, and CSL24V operators, running onboard diagnostics to interpret board error codes. We also maintain DoorKing 9150 slide operators, 6000 series swing units, and 1830 series telephone entry boards.

Viking Access, Nice Apollo, Eagle, and BFT Systems

From Viking T-21 and G-5 systems to Nice Apollo 1550 and 7000 series linear actuators, we diagnose microprocessor faults, calibrate electronic limit switches, and replace motor brushes or hydraulic fluid to keep legacy systems running smoothly.

What Does Gate Repair Southlake Cost? Transparent Pricing and Service Ranges

Gate repair pricing depends on whether the issue is electrical, mechanical, or structural. Ironworks Gate Co. provides clear, upfront pricing before beginning any repair work.

Typical Repair Cost Table

Repair Scope	Estimated Cost Range	Common Issues Included	Typical Repair Time
Sensor & Electrical Troubleshooting	$175 – $325	Photo-eye realignment, dead capacitor swap, safety edge repair, insect cleanout	45 – 90 minutes
Operator & Drive Rebuilds	$350 – $750	Replacement arm gears, limit switch assemblies, primary control boards, loop modules	1 – 2 hours
Structural Metalwork & Realignment	$450 – $1,250	Hinge replacement, post plumb reinforcement, frame gusseting, track repair	2 – 4 hours

Factors That Influence Total Repair Investment

Overall repair costs depend on the age of the operator, component availability, physical gate weight, and whether underground wiring needs troubleshooting. Rebuilding an existing operator is almost always hundreds or thousands of dollars cheaper than installing a completely new system.

Why Southlake Blackland Prairie Soil Triggers False Motor Failures

Southlake sits on the North Texas Blackland Prairie formation, known for dense vertisol clay. This soil expands dramatically when wet and contracts as it dries, creating substantial underground movement that directly affects heavy gate installations.

The Physics of Clay Expansion and Structural Misalignment

When soil swells after heavy rain, it pushes against concrete gate footings. Even a slight tilt of a structural post moves the latch end of an 18-foot gate panel noticeably out of place. This post deflection causes hinges to bind, magnetic locks to miss their strike plates, and sliding tracks to develop dips.

Safety Force Limits vs. Blown Motors: Addressing False Stalls

Roughly 70% of operator service calls in Southlake are diagnosed by inexperienced contractors as dead motors when the motor is actually in good working order. Modern operators include built-in safety sensors that measure motor amp draw. When shifting clay causes a hinge to bind or a gate to drag, the motor draws higher electrical current to push through the resistance. The control board interprets this resistance as a physical obstruction and locks out the system to protect against damage. Releveling the post, rebuilding the hinges, and resetting the travel limits clears the issue completely without an expensive motor replacement.

Southlake Neighborhood Coverage and Surrounding Service Areas

Our mobile service units carry comprehensive diagnostic equipment, welding tools, and OEM parts to resolve gate problems quickly across Southlake and surrounding communities.

Subdivisions We Serve Across Southlake

We provide prompt service to residential properties in Timarron, Monticello, Clariden Ranch, Carillon, Estes Park, Cambridge Place, Palomar Estates, and surrounding neighborhoods.

Neighboring Communities in the DFW Metro Corridor

Our service vehicles also cover adjacent areas across Northeast Tarrant and Southern Denton Counties, including Westlake, Colleyville, Keller, Grapevine, Trophy Club, and Roanoke.

Frequently Asked Questions About Gate Repair in Southlake TX

How much does automatic gate repair cost in Southlake, TX?
Most single-component electrical or sensor repairs run between $175 and $325. Mechanical operator rebuilds or board replacements range from $350 to $750, while on-site welding, post realignment, and structural hinge replacements typically cost between $450 and $1,250. You receive an exact written quote before any work starts.

Who provides emergency electric gate repair near Southlake?
Ironworks Gate Co. provides rapid same-day emergency gate repairs across Southlake, Westlake, and Colleyville. Our technicians can handle vehicle entrapments, lightning surge repairs, and mechanical binding on the first visit.

Why is my automatic gate opener not responding or opening slowly?
The most common cause is a tripped safety circuit or physical hinge resistance. If shifting soil tilts the gate post even slightly, the resulting hinge binding causes the motor to exceed its built-in force limit and shut down. Other frequent causes include dead backup batteries, misaligned photo-eyes, or worn motor capacitors.

How often should residential driveway gates be serviced and inspected?
Residential estate gates should be inspected and serviced every six to twelve months. Regular maintenance includes lubricating hinge bearings, inspecting drive chains or actuator seals, testing battery backup performance, checking safety loop calibration, and clearing insect debris from electronic housings.

Can you repair custom iron gates and access control keypads?
Yes. Our trucks carry mobile welding equipment to repair cracked pickets, sagging frames, and broken hinges on-site. We also diagnose, repair, and reprogram digital keypads, telephone entry boards, cellular access systems, and vehicle detection loops.

How long does a typical automatic gate repair take?
Most standard repairs, such as replacing a circuit board, swapping safety photo-eyes, rebuilding an actuator arm, or realigning hinges, take between one and two hours. Technicians carry common OEM parts on their trucks to complete the repair during the initial diagnostic appointment.

Frequently Asked Questions

How can I prevent Southlake's shifting clay soil from constantly misaligning my driveway gate?

Long-term stability requires anchoring structural posts in drilled concrete footings 36 to 48 inches deep to bypass expanding Blackland Prairie topsoil. Ironworks Gate Co. can excavate and reinforce existing shifting posts with concrete collars and install adjustable heavy-duty hinges to absorb seasonal ground movement.

What surge protection measures prevent lightning damage to Southlake electric gate motherboards?

Protecting outdoor operator electronics requires secondary surge suppressors installed directly on primary 120V power lines and low-voltage communication loops. Ironworks Gate Co. replaces fried microprocessors and installs dedicated surge arrestors to shield circuit boards from North Texas storm spikes.

How do I schedule a diagnostic visit and get an upfront gate repair quote?

Homeowners can call Ironworks Gate Co. directly to schedule a same-day diagnostic visit across Southlake and surrounding luxury subdivisions. A technician performs a comprehensive electrical and mechanical audit on-site, providing a fixed written repair quote before any work begins.
